Laser Engraving
Get Laser engraving ideas for your project from some of the work in our gallery. For 14+ years Modelcraft Laser have been laser engraving Sydney and Australia wide. We can laser engrave wood and acrylic as well as mark some metals and glass.
What is laser engraving?
Laser engraving works similarly to a printer - the laser head moves from side to side.
But instead of printing ink, the laser beam removes material.
The power, speed and focus settings settings (and more) can be adjusted to get a deeper or shallower result.
Wood Engraving
Different timbers will have different results. If you are after advice and need laser engraving on wood please get in touch!
We have a wide selection of wood for engraving or you can bring your own item or special timber in.

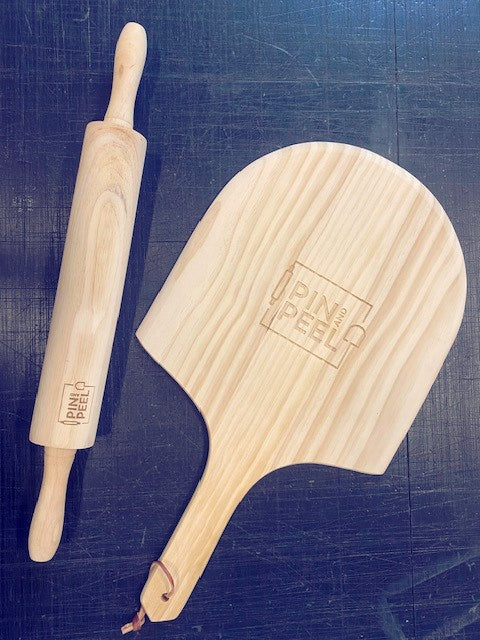

Laser engraving wood examples
-
Different wood engraving results
can be achieved. Standard laser engraving will typically have a slightly darker tone where the wood engaving has occured.
Special techniques and tools including paints can also be added to increase contrast.
If you have any requirements or questions just ask and we are happy to help. -
Laser engraving plywood
Shop our plywood collectionIf you need to engrave plywood we have a variety of different timbers in stock, including more affordable or premium ply to suit your needs.
-
Large wood engravings
We can also engrave larger objects, rounded objects (to a degree) and large objects if they can fit in the laser engraving machines.
Our largest laser can fit objects up to 1200mm x 600mm x 200mm height

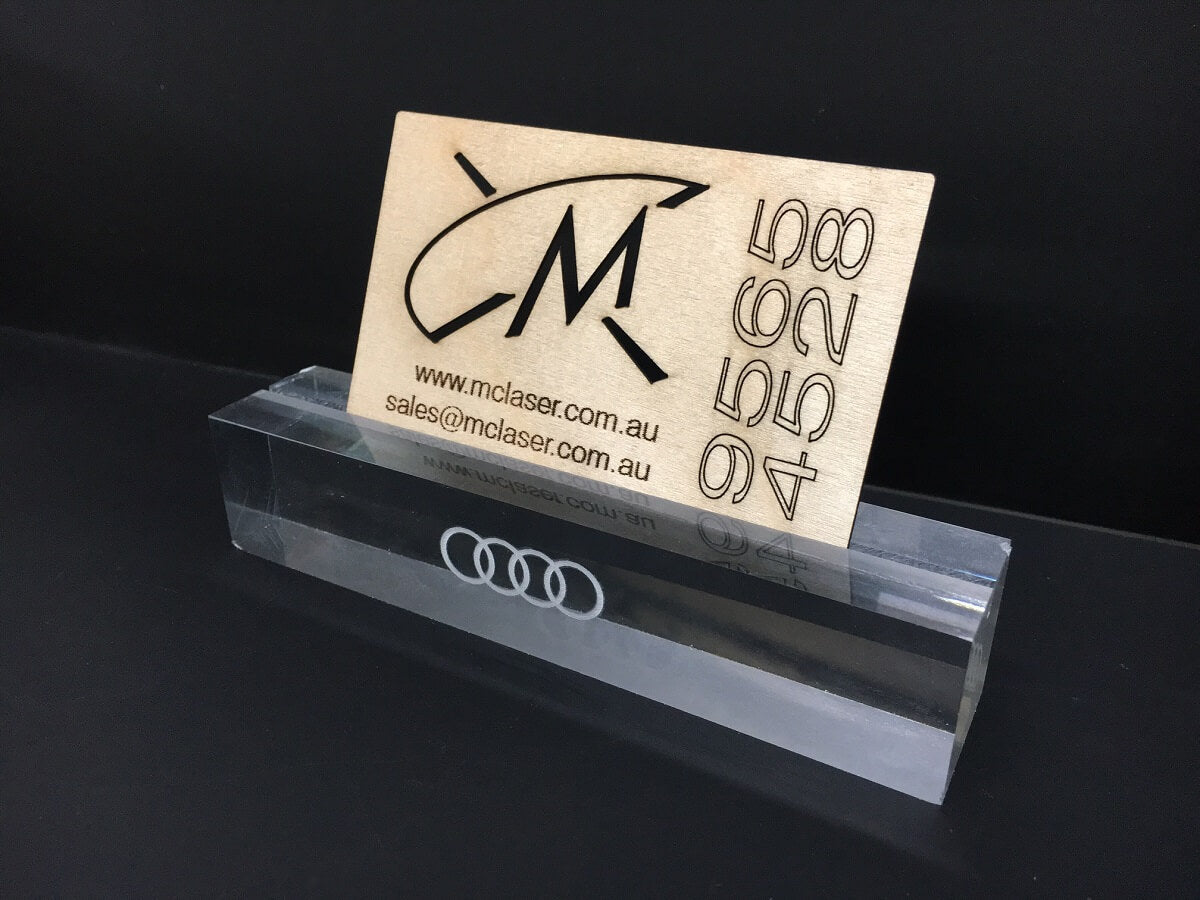

Laser engraving acrylic examples
-
Acrylic engraving can vary in finish.
We can engrave on the rear side of your acrylic, reversing the letters so they can be read correctly on the other side.
If you have any requirements or questions just ask and we are happy to help. -

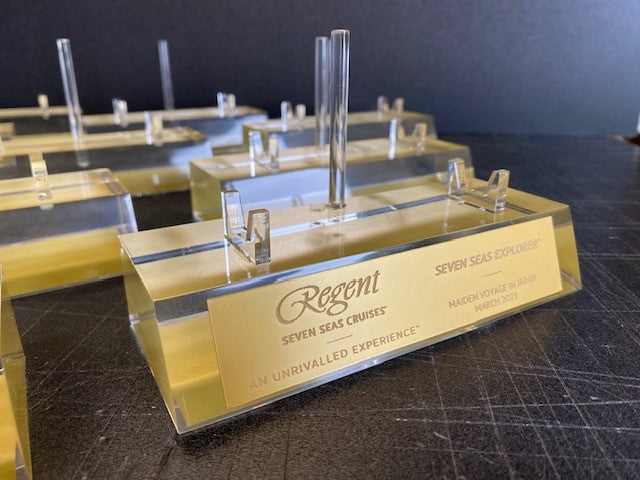

Laser engraved awards
Modelcraft Laser have engraved hundreds of acrylic awards and we can achieve great results for you.
We can also apply paint to the recessed engraving if you require. -
Engraved Acrylic options
We can engrave large objects and rounded objects (to a degree) if they can fit in the laser engraving machines.
Our largest laser can fit objects up to 1200mm x 600mm x 200mm height
Laser engraving metals service
With the use of specialist techniques our Co2 Laser engravers can mark anodised aluminium and stainless steel. We can also mark copper and brass.
We typically laser mark at 1000 DPI for a high quality finish!
Please note we can not cut metal unfortunately.

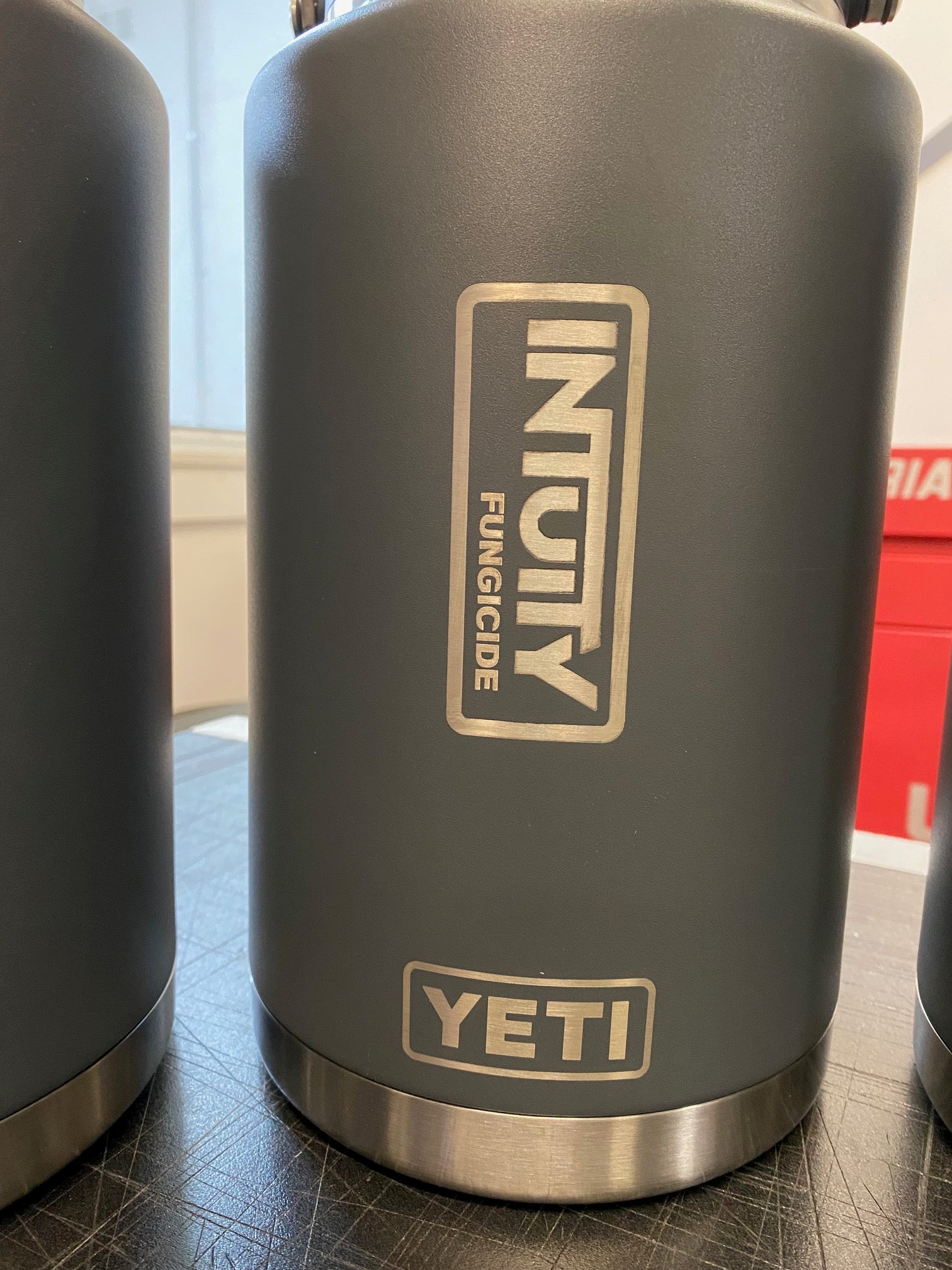

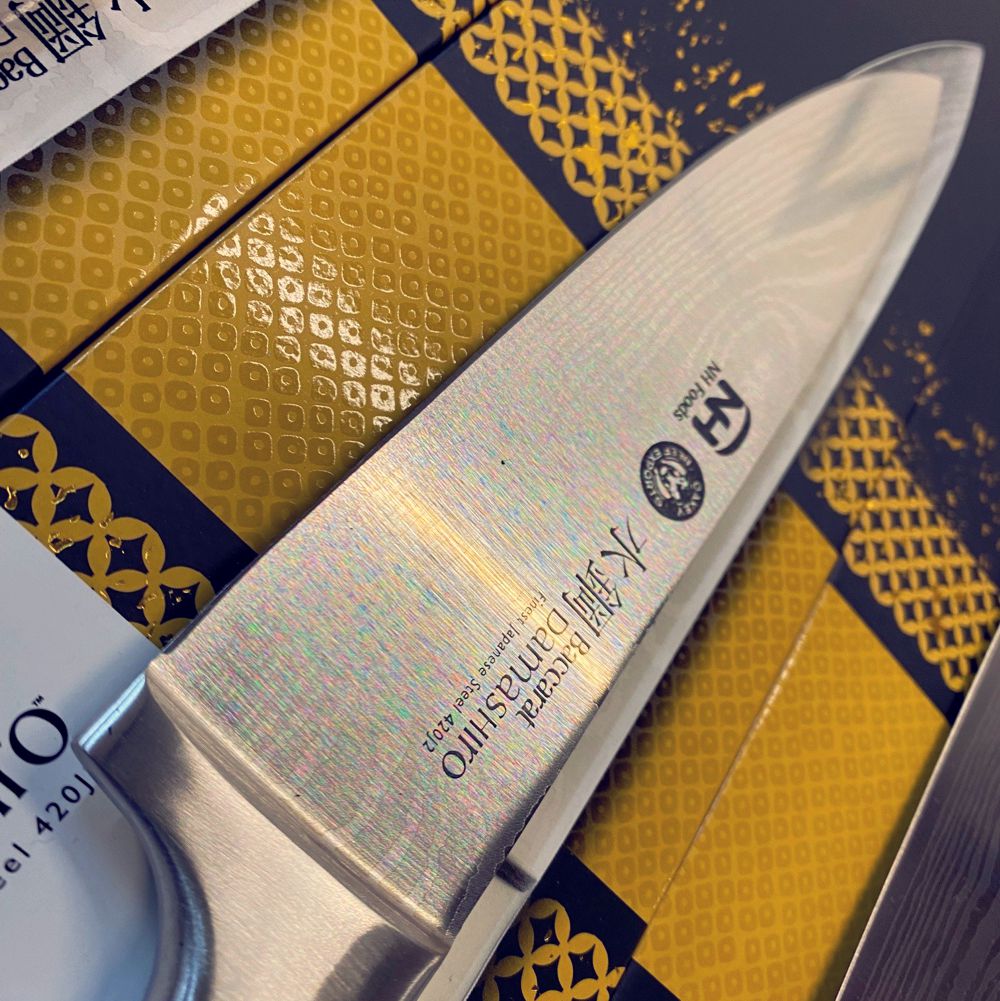

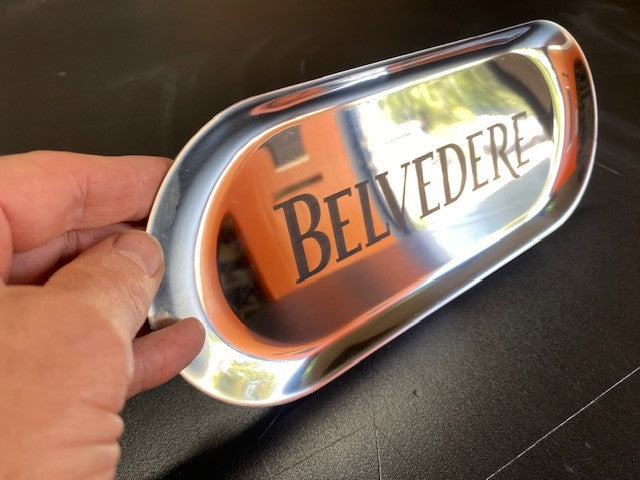

Examples of our metal laser marking work
Laser Engraving FAQ
What materials and products can be laser engraved?
Our accurate Co2 Lasers can engrave a wide range of materials, including:
- Most timbers, plywood and MDF
- Cork
- Acrylics / Perspex
- Glass can be laser marked, not engraved.
- Metals including steel & stainless steel, aluminium, copper and brass can be marked not engraved.
- Trophies
- Signage
- Various stones, bricks and concrete objects
- Giftware
- Some paper and card
- Leather and some fabrics
- Rubber
- Ceramic
How much will it cost to get my item laser engraved
Most lasercutting projects range between $40-$250, but this can vary widely.
The cost of a job is based on the number of drawings or sheets to be cut, the material and labour costs, and the time it takes to cut (which is roughly proportional to the total length of the lines in your drawing and the thickness of the materials to be cut).
Follow our laser services process guide to keep labour costs down and receive your quote efficiently.
What is the difference between laser etching, laser marking and laser engraving?
- A laser engraver can cut, etch, mark and engrave various materials. MC laser have Co2 lasers which can not cut metals. We can mark and etch metals, depending on the specific alloy.
- Laser Marking: Laser processes the surface of metal. High powered laser beams, often with the aid of specialist chemicals to increase contrast and fuse the chemical solution with the materials surface.
Pros: very detailed, quick and leaves a long lasting or permanent white or dark mark on a material surface. - Laser Etching: The laser beam creates shallow marks on metals, changing the surface and altering the chemical composition of the metal. We can not laser etch metals or glass, only mark them. Other materials can be be etched - changing the colour and finish of the surface without making deep marks.
- Laser Engraving: The laser beam processes for a longer duration and physically removes or vaporises matter, leaving a shallow to deep recess, depending on settings.

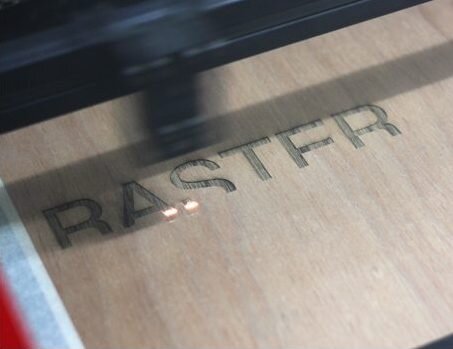

Raster Engraving
Green Fill – if you want the laser to engrave continuous fill (known as rastering) then you should use a green fill on your drawing.
White Fill – you can use objects with white fill on top of green filled areas to create negative fill e.g. to avoid filling in the centre of letters.
Objects – polylines will need to be continuous to form objects which can be filled. A separate black outline is not usually required.
Note – keep in mind that vector (line) cutting is generally quicker and therefore cheaper than raster (fill) engraving.
Looking for more laser engraving ideas?

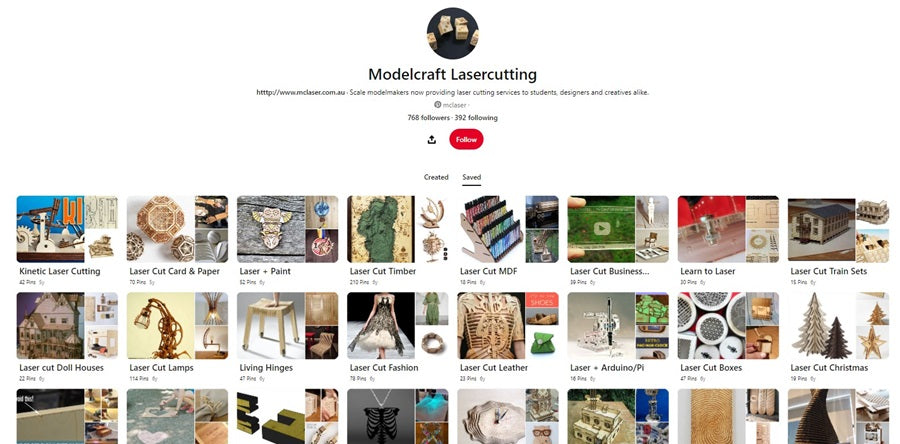

We have spent time collecting heaps of awesome laser engraving project ideas in dozens of pinterest boards!
Whether you are looking to create thoughtful gifts, elevate your personal or corporate branding or you have a student creative project the ideas here may save you some time!
14+ years experience providing laser engraving services to Sydney and Australia
Based in Sydney, Modelcraft Laser has provided expert laser engraving services to the community and private sector. We have helped customers engrave a wide range of materials.
We can engrave wood, acrylic, leather, glass, nameplates, custom signage and other materials. Our expert operators ensure the effort you have put into your products is matched by the precision of our american made Co2 laser engravers.
Have your own laser?
If you have your own laser engraver, we can offer you a selection of quality materials. We ship Australia wide. Whether you are based in Melbourne, Newcastle or elsewhere we can supply you with laserply, acrylic and more. Material sheet sizes come in the popular 600 x 300mm size. Pickup options are available at our St. Peters workshop in Sydney.
